Name: Compact Wall
SKU: CW2232B
Availability: InStock

Description

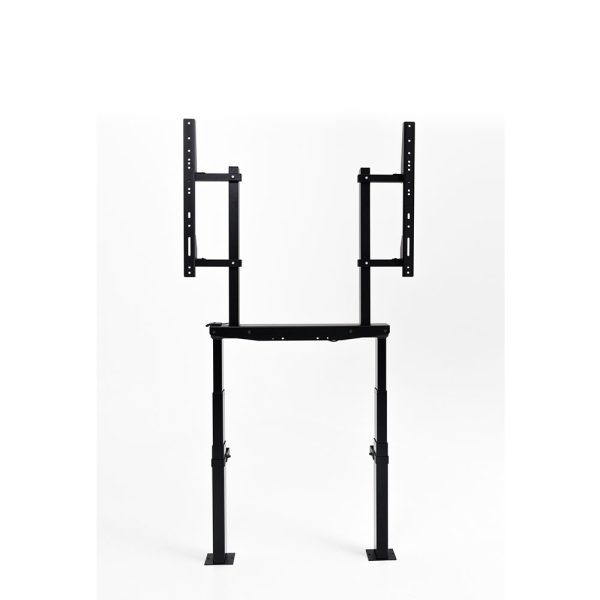

The Slimline Compact Wall: The all-round favourite among wall/floor lifts

Anyone looking for a large number of electric wall/floor lifts for a wide range of working environments will find the Slimline Compact Wall to be an ideal, high-quality mounting system. We supply the Compact Wall as practical flat-pack kits, with up to twenty units on a single pallet, keeping transport costs relatively low. Perfect for export and public tenders. And don’t worry about assembly: it’s done in just fifteen minutes.

Renewed version

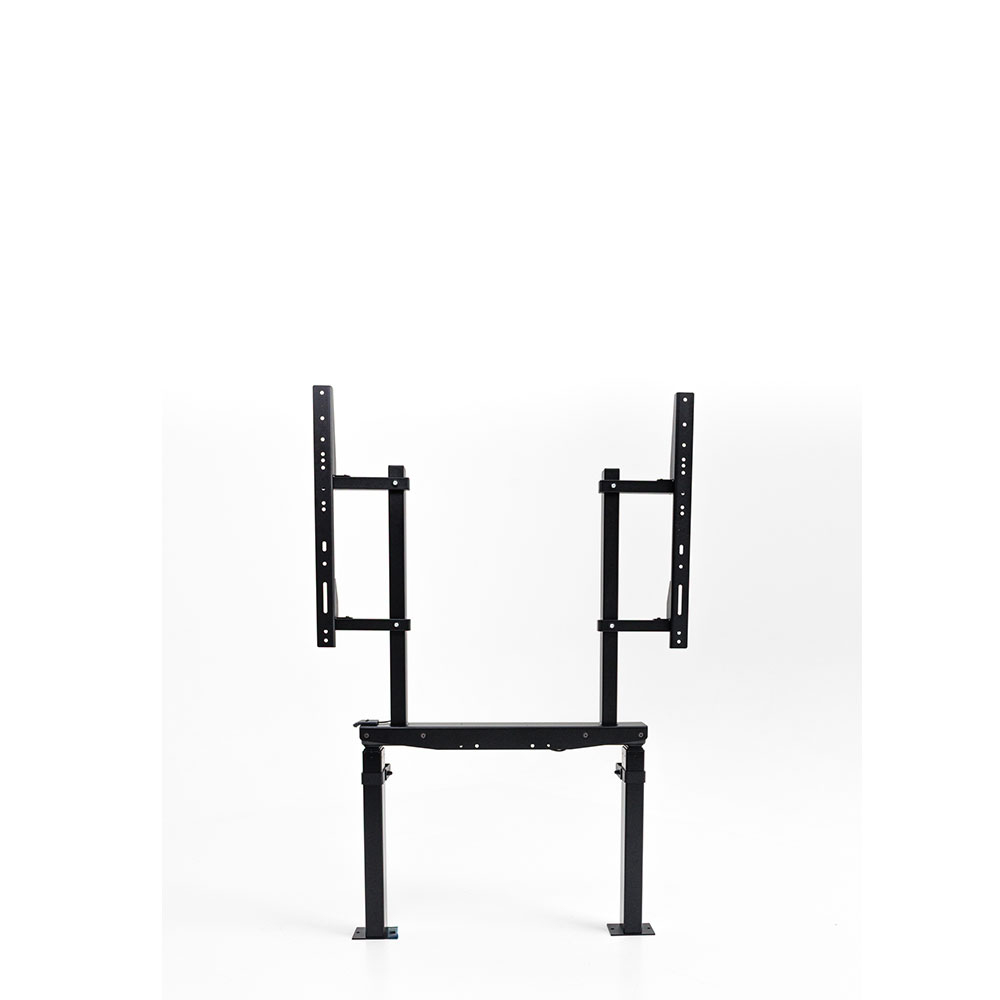

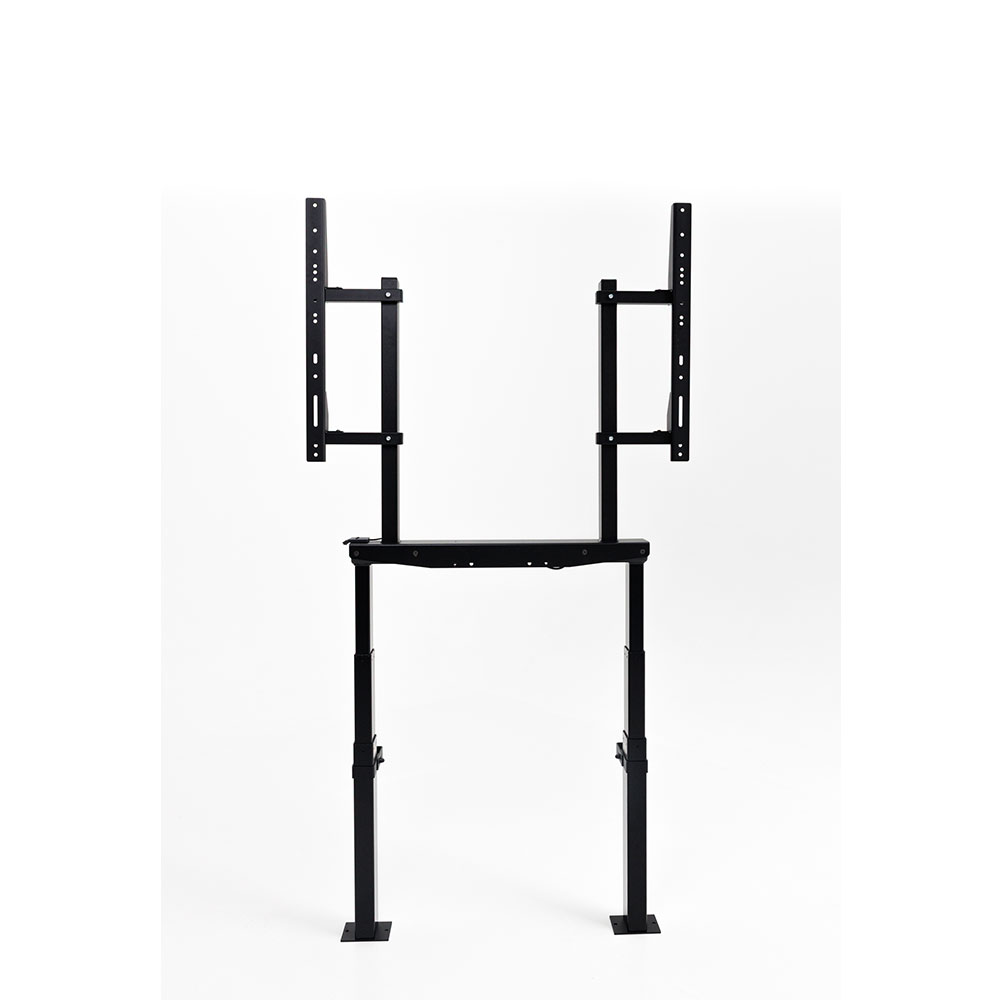

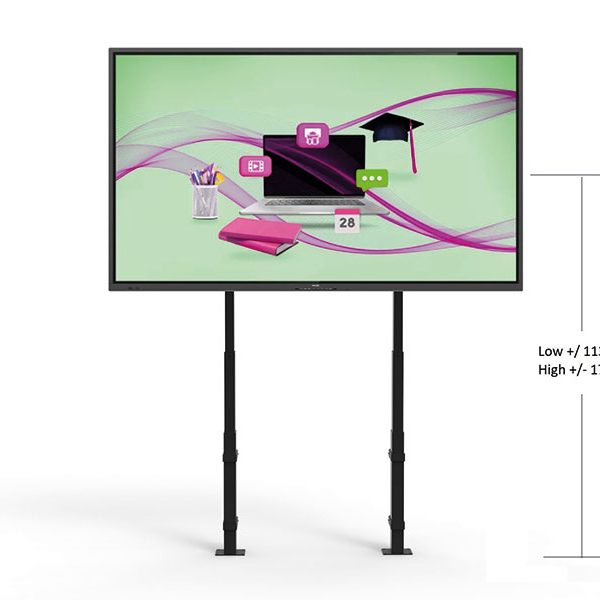

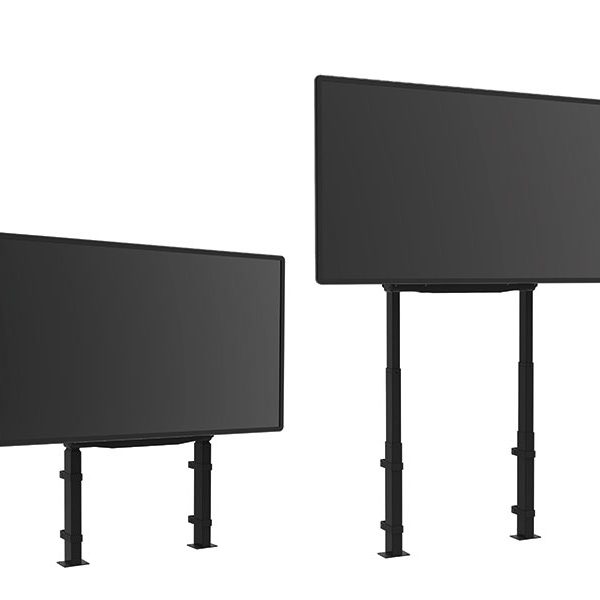

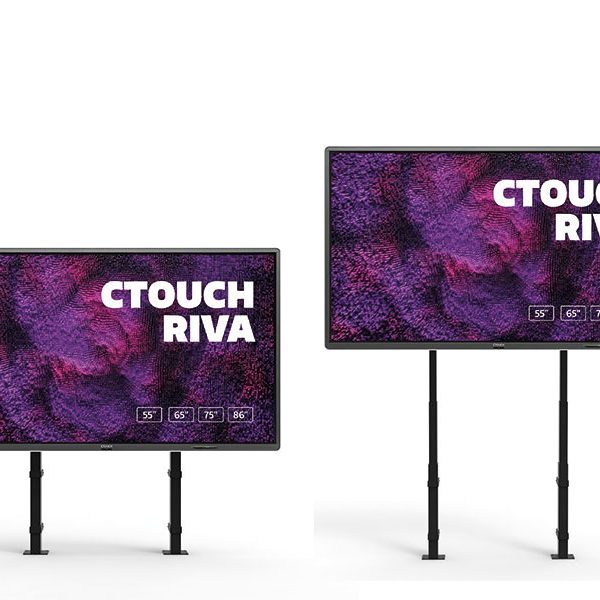

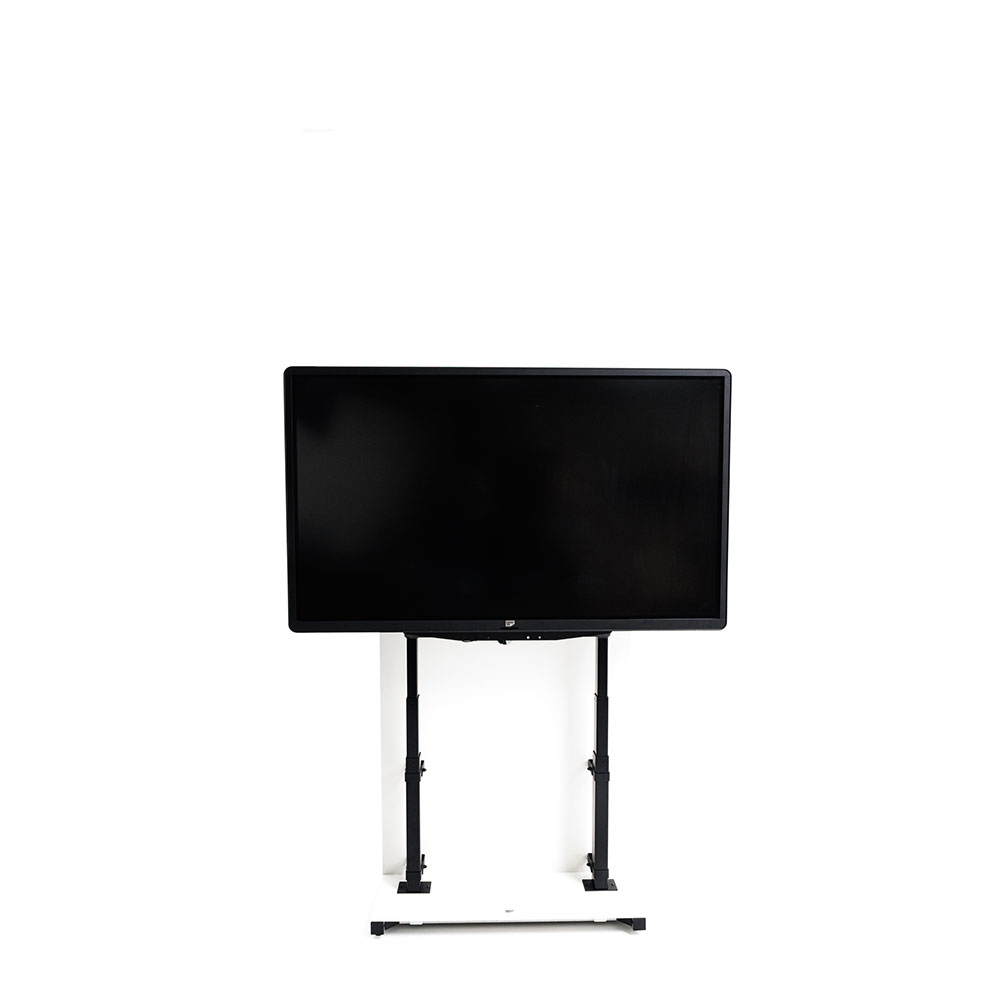

Both the Compact Wall and its mobile counterpart, the Compact Mobile, have been thoroughly renewed. This makes them even smarter in assembly, stronger in use and more widely applicable than before. And the price? It has been reduced. Simply because we could. The Compact Wall offers a height adjustment of 65 centimetres, from a minimum of 113 centimetres up to a maximum of 178 centimetres. This makes it ideal for primary education, but it feels just as much at home in offices, healthcare institutions and hospitals. We don’t call it our all-round favourite for nothing.

Rock solid

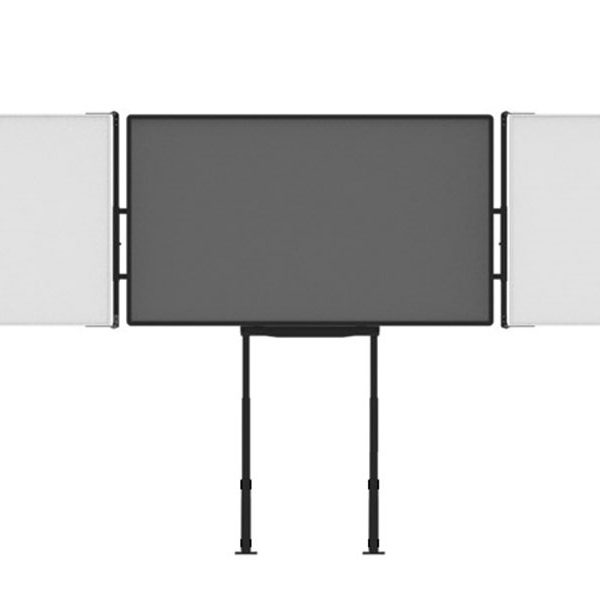

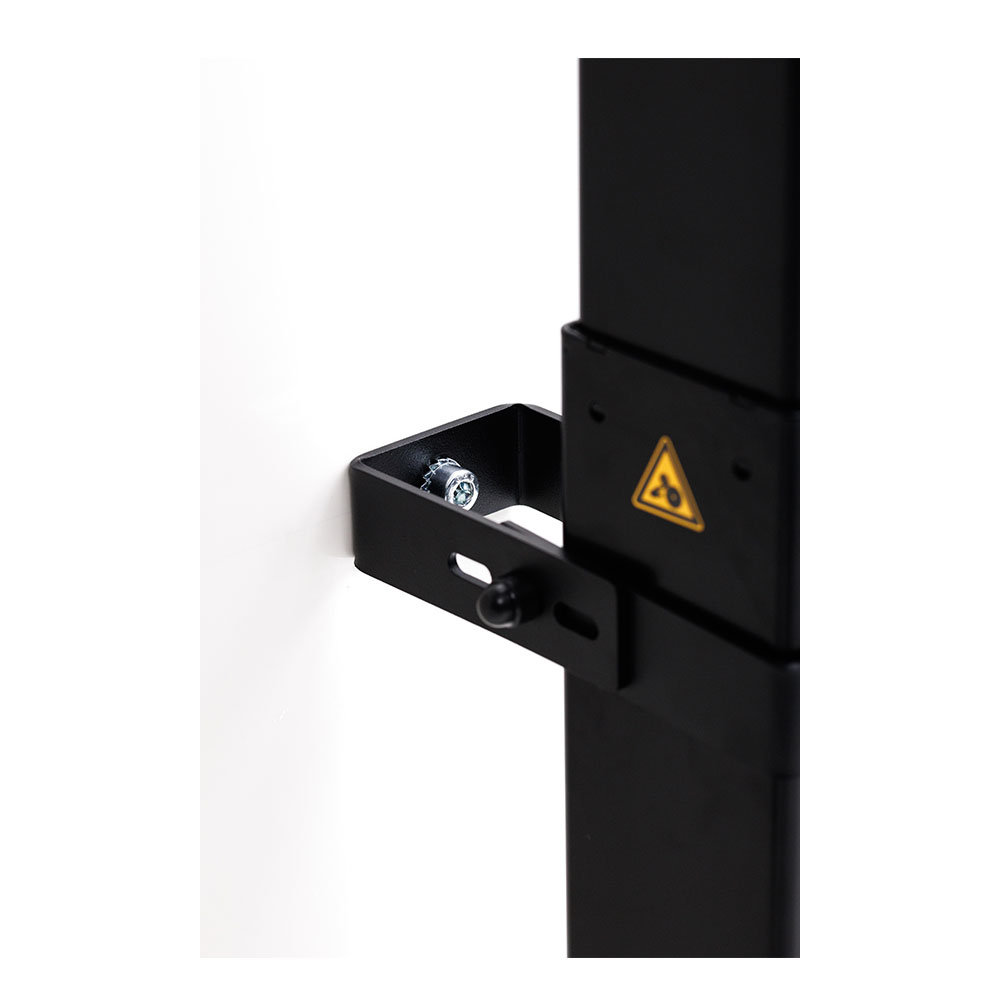

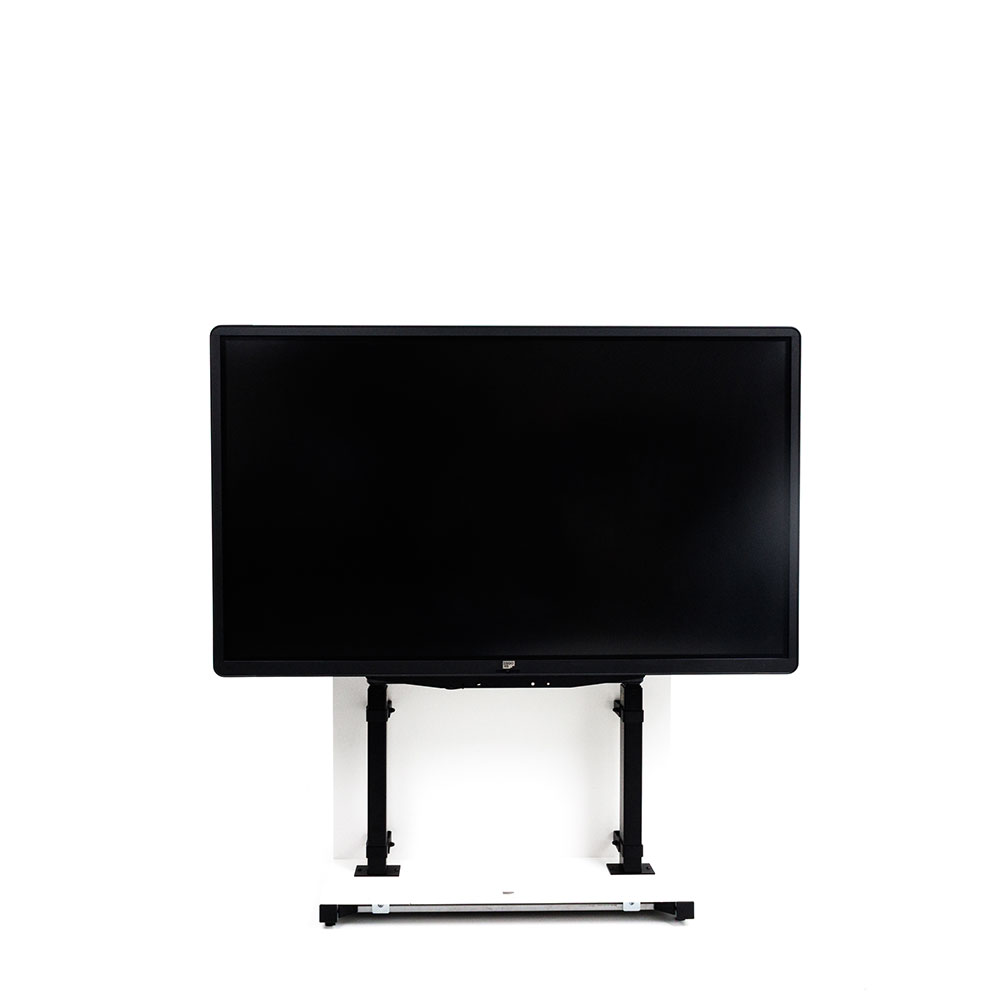

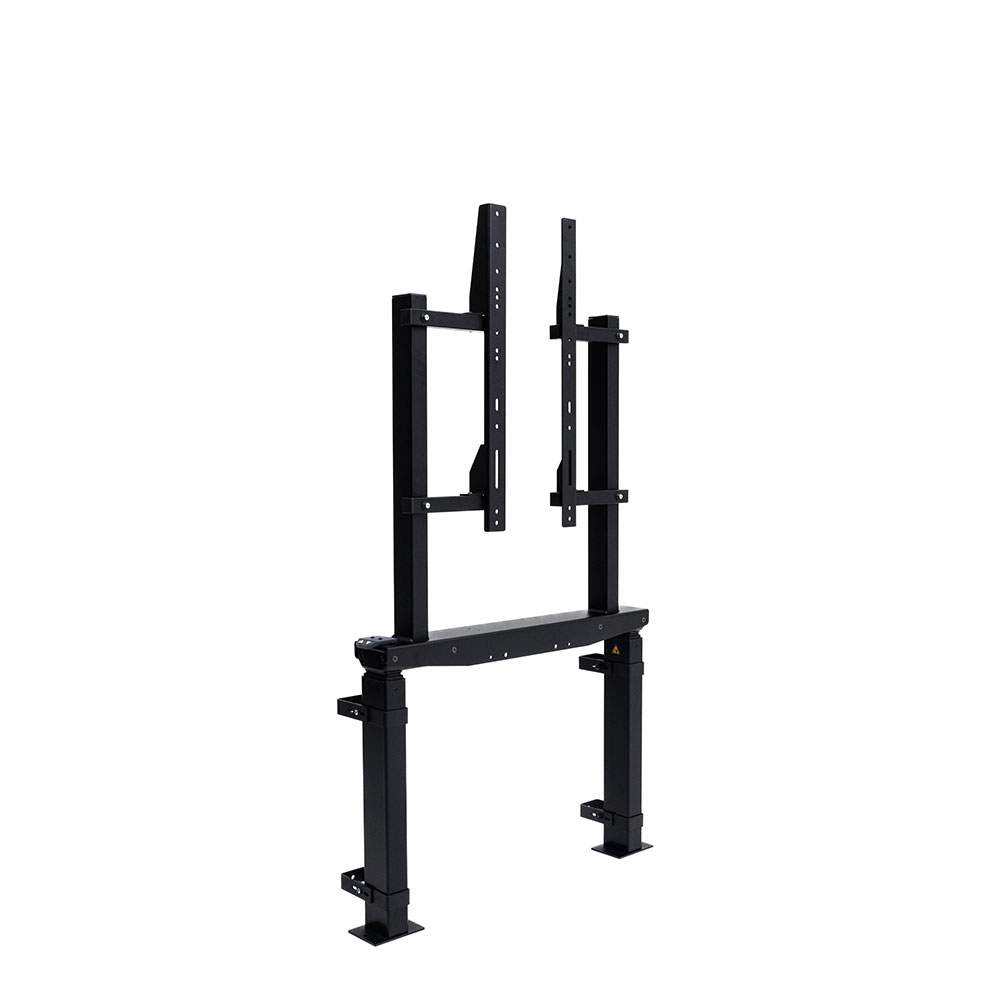

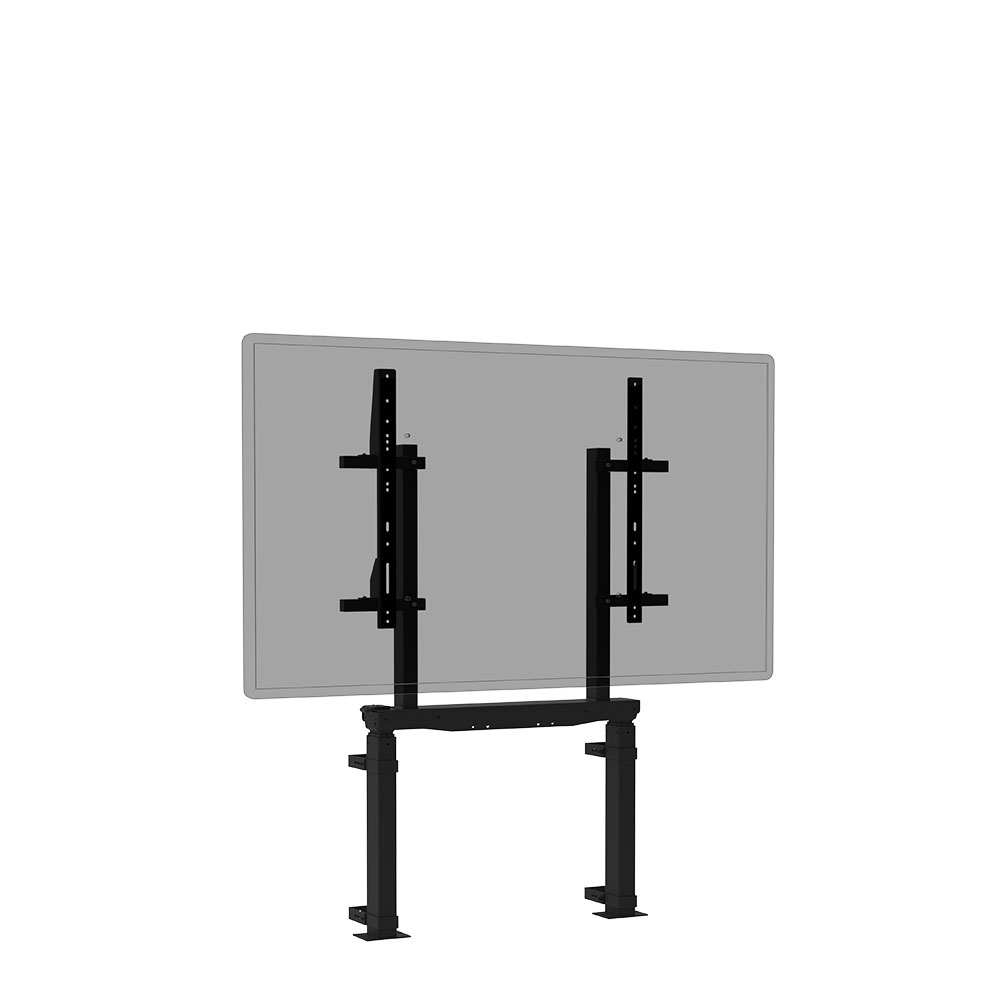

With the Compact Wall, you choose a high-quality electric dual-column lift with an excellent price–quality ratio. And don’t be fooled by its slim design: the Wall supports displays up to 100 kilograms, with VESA sizes ranging from 200 × 200 mm to 800 × 600 mm and allows the mounting of whiteboard frames of 65”, 75” and 86”. With four supplied wall brackets, the Compact Wall is securely fixed to the wall. In addition, it stands firmly on four compact but extremely strong floor plates measuring 150 × 150 mm. A rock-solid lift system that truly stands its ground.

Safety Stop and expansion options

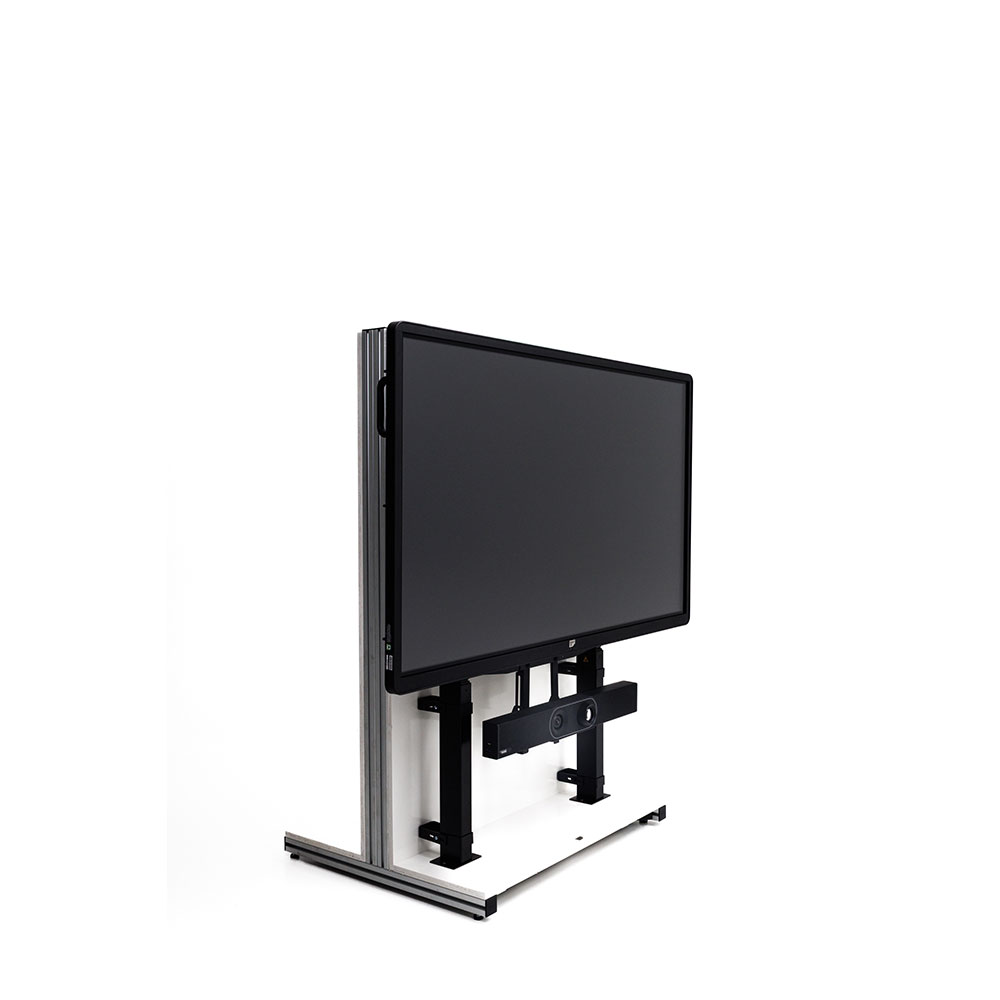

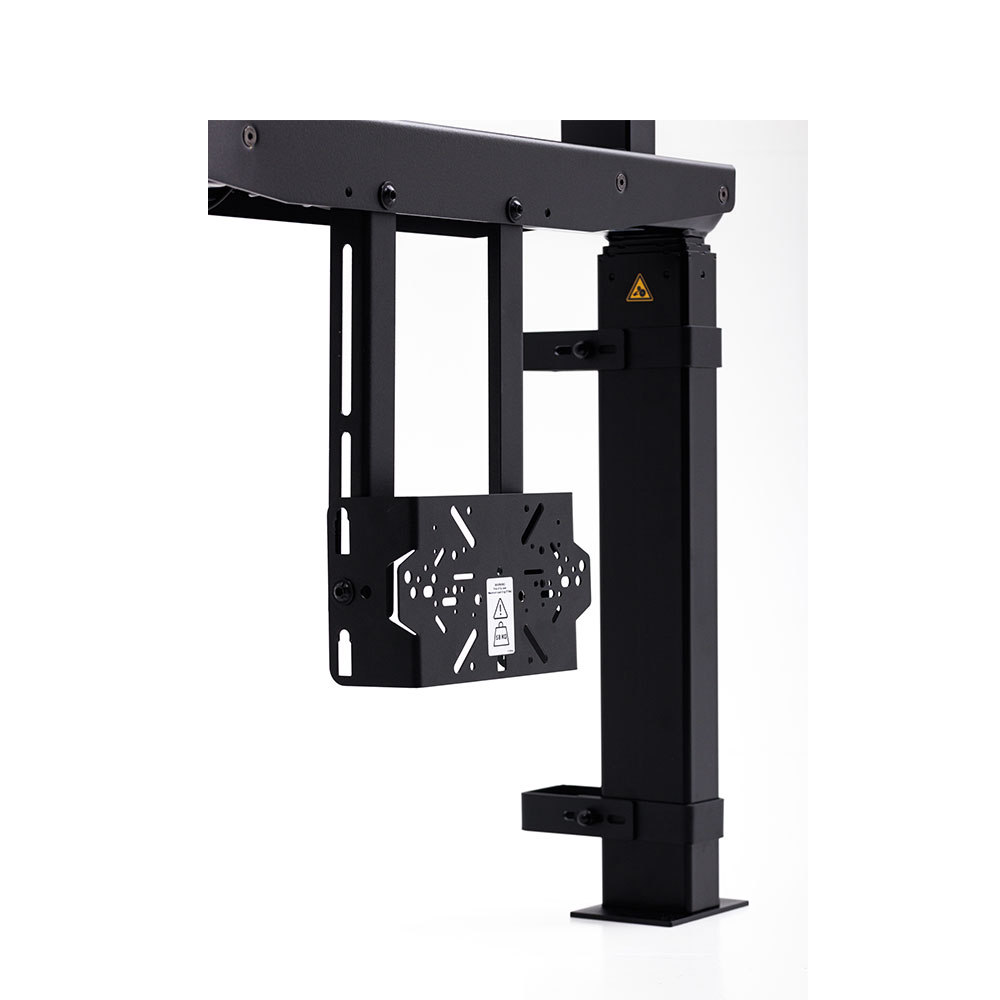

Finally, the finishing touches. These have also been carefully considered. The Compact Wall supports various AV components, both above and below the screen, and is suitable for accessories from brands such as Crestron, Yealink and Logitech. It is also equipped with a Safety Stop: if the lift system comes into contact with anything while adjusting its height, it stops automatically. Safe and reassuring.

Additional information

Type of screen	Touch / Interactive, TV/Monitor/Display
Adjustable height	Yes, electric
Type of system/setup	Wall – Floor mounting
Format display/screen	< 43 inch, 43 inch – 55 inch, 56 inch – 65 inch, 66 inch – 75 inch, 76 inch – 86 inch
Display weight	≤30 kg, 31 – 40 kg, 41 – 50 kg, 51 – 60 kg, 61 – 70 kg, 71 – 80 kg, 81 – 90 kg, 91 – 100 kg
VESA screen size (wxh)	200 x 100 mm, 200 x 200 mm, 200 x 230 mm, 200 x 300 mm, 200 x 350 mm, 200 x 400 mm, 200 x 600 mm, 300 x 100 mm, 300 x 200 mm, 300 x 230 mm, 300 x 300 mm, 300 x 350 mm, 300 x 400 mm, 300 x 600 mm, 400 x 100 mm, 400 x 200 mm, 400 x 230 mm, 400 x 300 mm, 400 x 350 mm, 400 x 400 mm, 400 x 600 mm, 500 x 100 mm, 500 x 200 mm, 500 x 230 mm, 500 x 350 mm, 500 x 400 mm, 500 x 600 mm, 600 x 100 mm, 600 x 200 mm, 600 x 230 mm, 600 x 300 mm, 600 x 350 mm, 600 x 400 mm, 600 x 600 mm, 700 x 200 mm, 700 x 100 mm, 500 x 300 mm, 700 x 230 mm, 700 x 300 mm, 700 x 350 mm, 700 x 400 mm, 700 x 600 mm, 800 x 100 mm, 800 x 200 mm, 800 x 230 mm, 800 x 300 mm, 800 x 350 mm, 800 x 400 mm, 800 x 600 mm
How many screens will be mounted	1 screen
Whiteboard next to the screen possible	Yes
Whiteboardframe format	65 inch, 75 inch, 86 inch
Color	Black
Installation of components possible	No
Safety stop	Yes
State of delivery	Self-built
Maximum electric height adjustment range	65 – 66 cm
Product line	Slimline
TÜV Certification	No

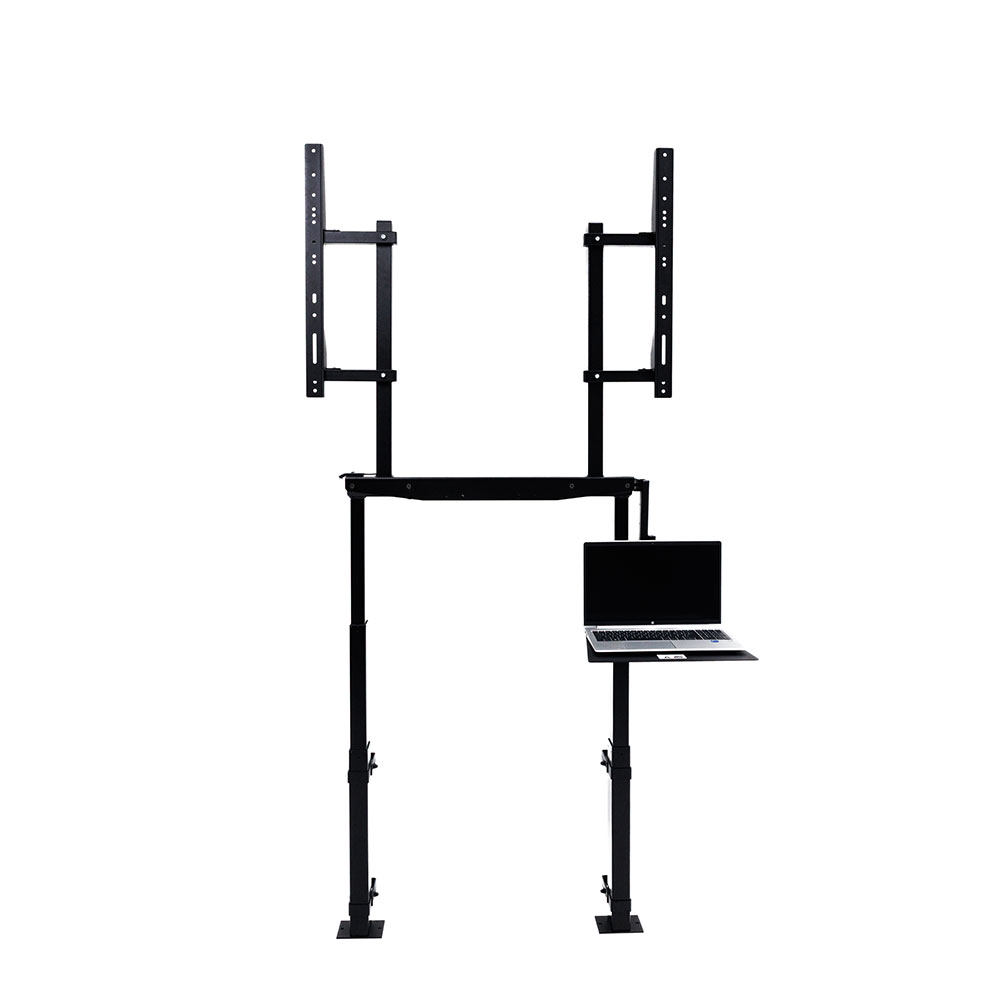

Recommended accessories

Discover our handy accessories for even more convenience!

For this system, we have a range of accessories that make working with it even easier and more pleasant. From practical storage solutions to handy extra functions, our accessories are designed to optimize your work process. Explore the possibilities and get the most out of your system with these handy accessories.

Documents & Downloads

Find out more about our product range!

Check our handy documents for detailed product or range information.

Download our product fact sheet for an overview of specifications and features.
Refer to the assembly manual for step-by-step instructions to easily assemble our product.
View the safety instruction to ensure you can use our product safely.
Browse through our full range brochure to get a complete overview of our products.

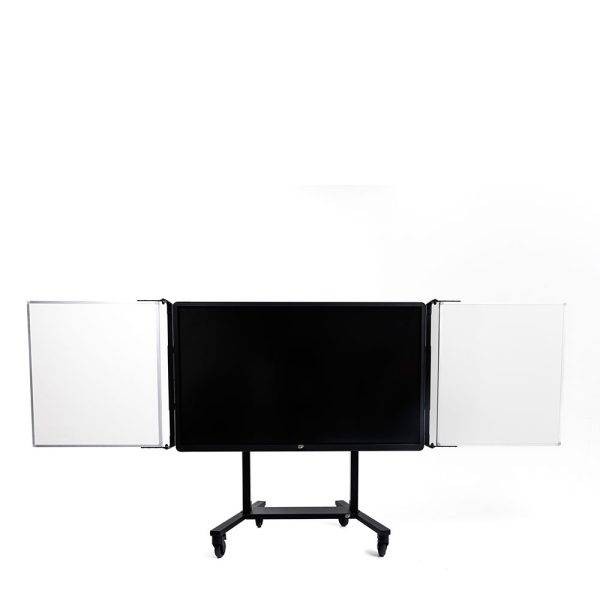

The Whiteboardframe Touch can also be mounted on this product; refer to the installation manual for instructions.

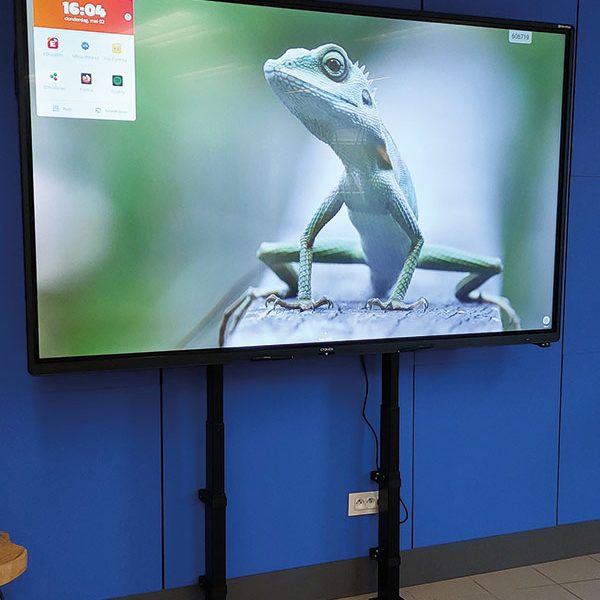

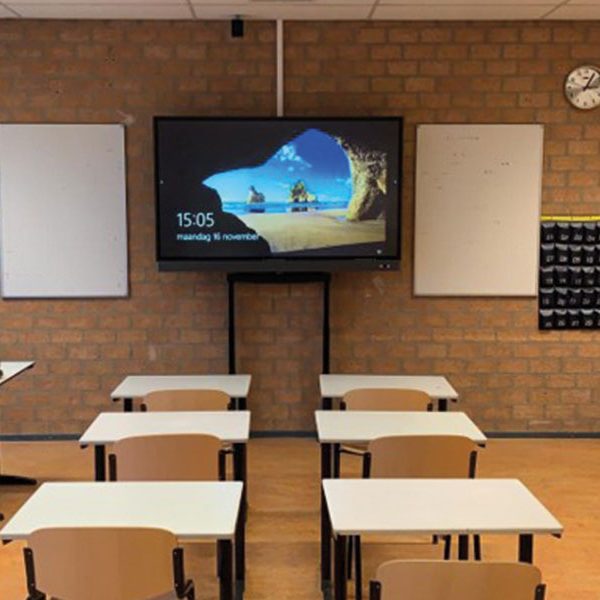

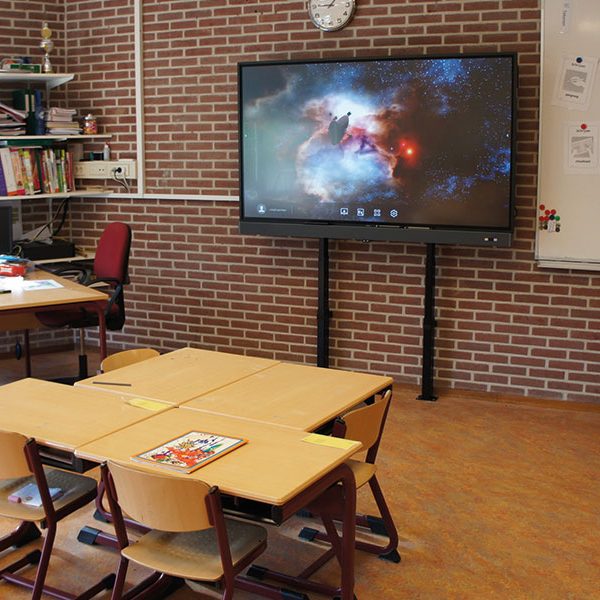

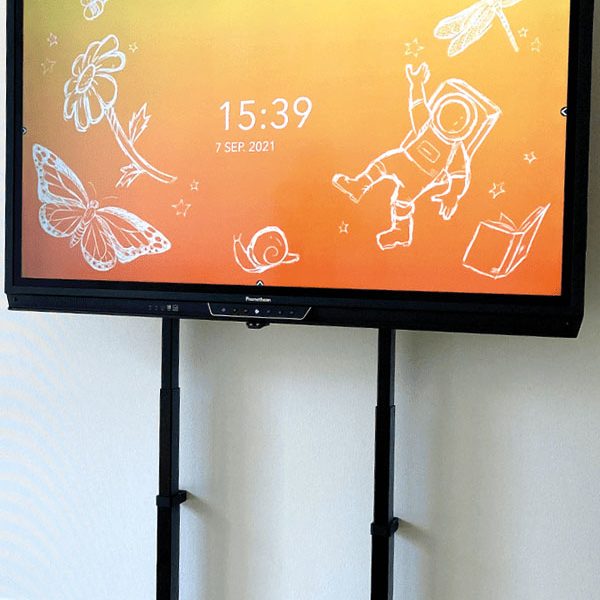

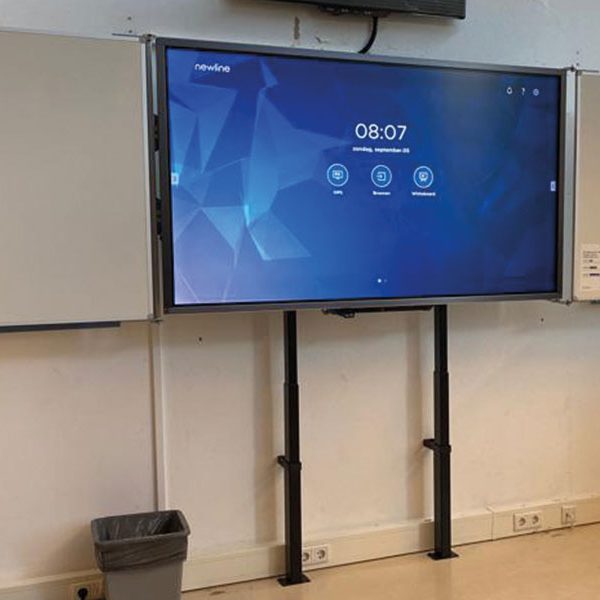

Examples from practice
