Fine Select

Product number: EFFW5225ZP

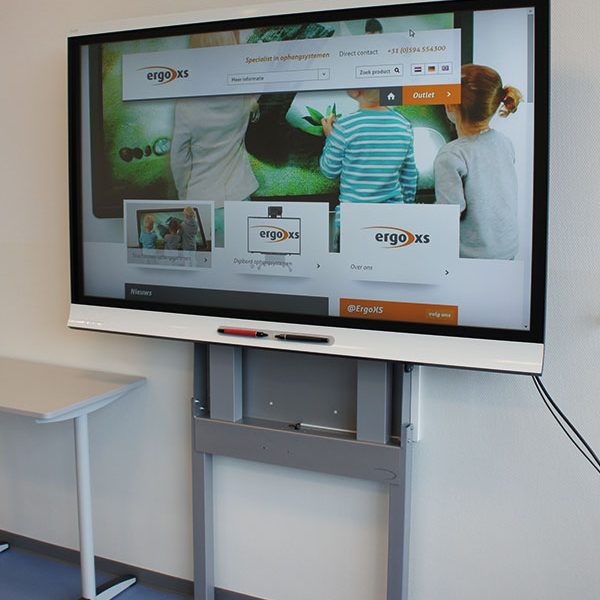

With the ErgoFrame Fine Select you can hang a screen with a weight of up to 100 kilos super flush against the wall without the need for a trolley or floor plate. It’s an ultra-thin, electric wall lift that allows you to raise screens and touchscreens to the correct height virtually silently and invisibly.

  • Electric wall lift
  • For screens up to 100 kilos
  • Ultra-thin frame
  • Suitable for eleven VESA sizes
  • Virtually silent and invisible
  • 66 cm adjustable in height
Toevoegen aan offerte
Categories: , , Product number: EFFW5225ZP

Description

Fine Select: super flush against the wall

Hang a screen as flush as possible against the wall without a trolley or floor plate? You can do this with the ErgoFrame Fine Select. A fully electric wall lift that will lift screens and touchscreens up to 100 kilos to the correct height virtually silently and invisibly.



Ultra-thin solution

The ultra-thin Fine Select is suitable for screens in eleven different VESA sizes with a maximum of 600 x 400 millimetres. The strong system – equipped with a Safety Stop that switches itself off immediately when it bumps, for example, into a piece of furniture – hardly takes up any space: the depth of the frame is a mere 100 millimetres. It’s a perfect solution for offices, boardrooms, showrooms, cafeterias, hotels and private bedrooms, but it’s also suitable for smaller spaces.



Optimum experience

The Fine Select is equipped with as few bells and whistles as possible so that what is shown on the screen is experienced optimally. The system is therefore hidden behind the screen as much as possible, virtually invisible. It’s also competitively priced because we can supply 14 wall lifts per pallet, which keeps the shipping costs relatively low. You do have to assemble the Fine Select yourself, but you can do that in just fifteen minutes.



Heavier version

Looking for a version that can lift heavier screens? Then take a look at our Fine Supreme for flatscreens and touchscreens weighing up to 130 kilos. An even simpler and cheaper alternative is a Wall bracket. It is not electrically adjustable, but it is suitable for hanging large screens on the wall: you hang it once at the correct height and don’t have to think about it ever again.



Extension sets

If you have a larger screen than the maximum VESA size of the Fine Select, you can purchase various extension sets which can lift screens up to a maximum of 1000 x 800 millimetres. You can also expand the wall lift with three types of extra support legs, which we definitely recommend for use on weaker walls such as plaster or partition walls. With this wall & floor mounted version, you can lift the screen to heights of a minimum of 97 to a maximum of 163 centimetres, 117 to 183 centimetres or 137 to 203 centimetres – measured from the centre of the VESA mounting bracket.

Additional information

Type of screen

Touch / Interactive, TV/Monitor/Display

Adjustable height

Yes, electric

Type of system/setup

Wall mounting

Format display/screen

< 43 inch, 43 inch – 55 inch, 56 inch – 65 inch, 66 inch – 75 inch, 76 inch – 86 inch

Display weight

≤30 kg, 31 – 40 kg, 41 – 50 kg, 51 – 60 kg, 61 – 70 kg, 71 – 80 kg, 81 – 90 kg, 91 – 100 kg

VESA screen size (wxh)

200 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 456 x 400 mm, 500 x 400 mm, 600 x 200 mm, 600 x 230 mm, 600 x 400 mm

How many screens will be mounted

1 screen

Whiteboard next to the screen possible

No

Color

Grey

Installation of components possible

No

Safety stop

Yes

State of delivery

Fully assembled

Maximum electric height adjustment range

65 – 66 cm

Product line

ErgoFrame

TÜV Certification

No
