EFK6200 – ErgoFrame double column tilting table
Double column tilting table aluminium-grey

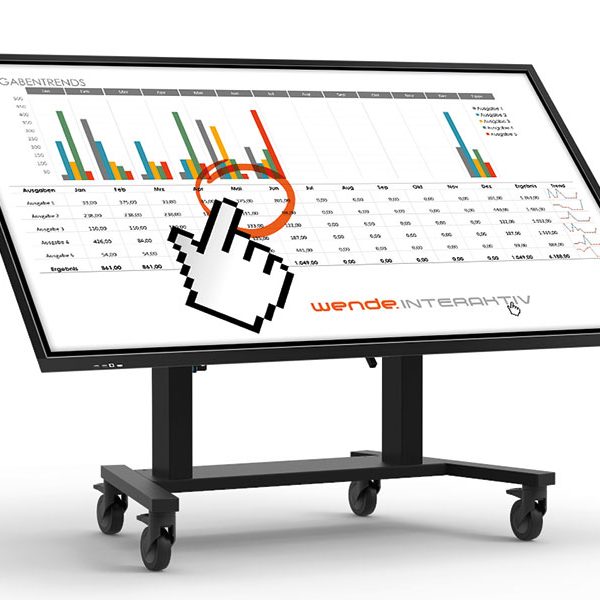

The tilt table makes it possible to work with a touchscreen in different positions at different heights.

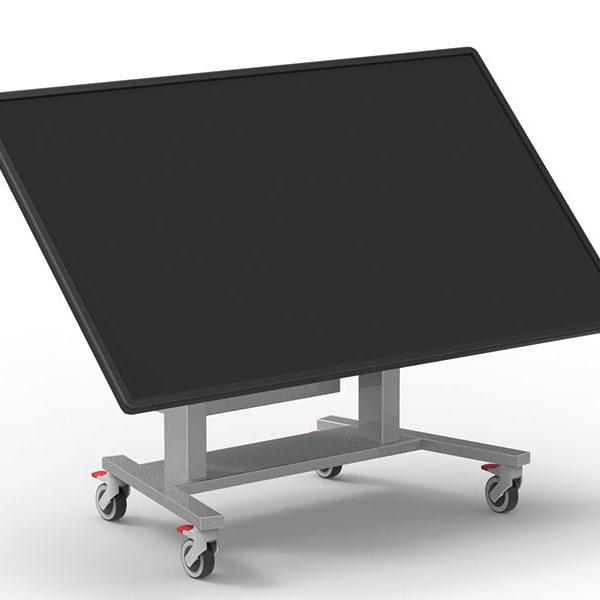

Vertical, Horizontal or Diagonal, everything is possible with this mobile tilt table.
The tilt table is suitable for many brands of touchscreens that have VESA measurements up to 70 kg.

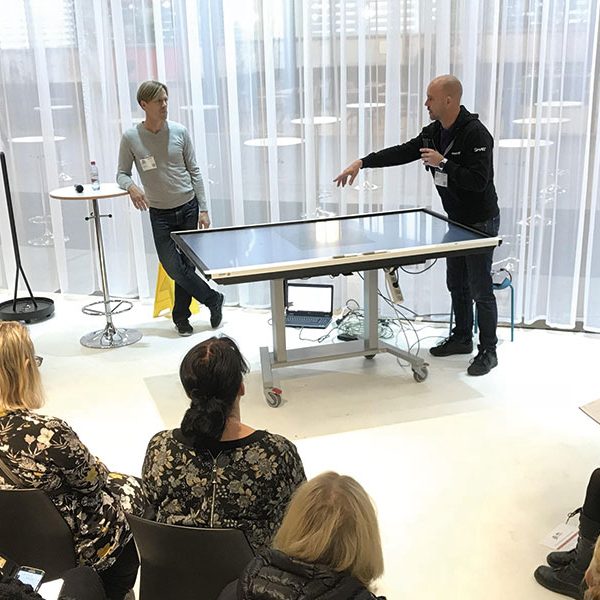

Widely used in meeting rooms, secondary schools and higher education.
We have designed a lower version specially for primary schools. See article EFK6200EL.
Specifications
- Electronic height adjustment: 66 cm
- Horizontal: minimum height 77 cm, maximum height 144 cm. The screen depth needs to be included here
- Vertical: (heart size) minimum height 79 cm, maximum height 146 cm
- VESA screen mounting: 800 x 400 / 700 x 400 / 600 x 400 / 500 x 400 / 456 x 400 / 440 x 400 / 400 x 400/ 300 x 400 / 200 x 400 mm
- Maximum screen weight: 70 kg
- Fitted with 4 sturdy braked swivel castors that are 100 mm in diameter
- Delivery: fully assembled on a pallet. Max. 2 pieces per pallet.
